GAM620HA Automatic Unloader
| GAM620HA | |
|---|---|
| Tray size | 200*150mm-400*450mm |
| Track height | 910mm |
| Tray stacking height | 500mm |
| Tray movement direction | Left to Right or Right to Left |
| Loading/unloading Method | loading/ unloading via racking by manual AGV / AGV racking / SMT AGV (option) |
| Tray’s rising and falling | Screw and servo motor with brake |
| Tray’s track moving | Use stepper motor to run belt |
| tray rail's width adjustment | By manual |
| Open/close tray track | Air cylinder |
| Clamping jig’s rising and falling | Use servo motor to run its air cylinder & screw |
| Cart size(W*D*H) | 565*485*850mm |
| AGV's size (W*D*H) | 395*500*190mm above (option) |
| SMT AGV's size(W*D*H) | 395*500*850mm (option) |
| Connecting work equipment | In-line PCB router machine / AGV |
| Voltage/Power requirement | AC220V 50/60HZ 2KW 1Φ |
| Pneumatic pressure requirement | 0.5-0.6MPa,40L/min |
| Dimensions(W*D*H) | 1310*1020*1900mm |
| Weight | 450kg |
| Change without notice. Welcome customized request. |
|

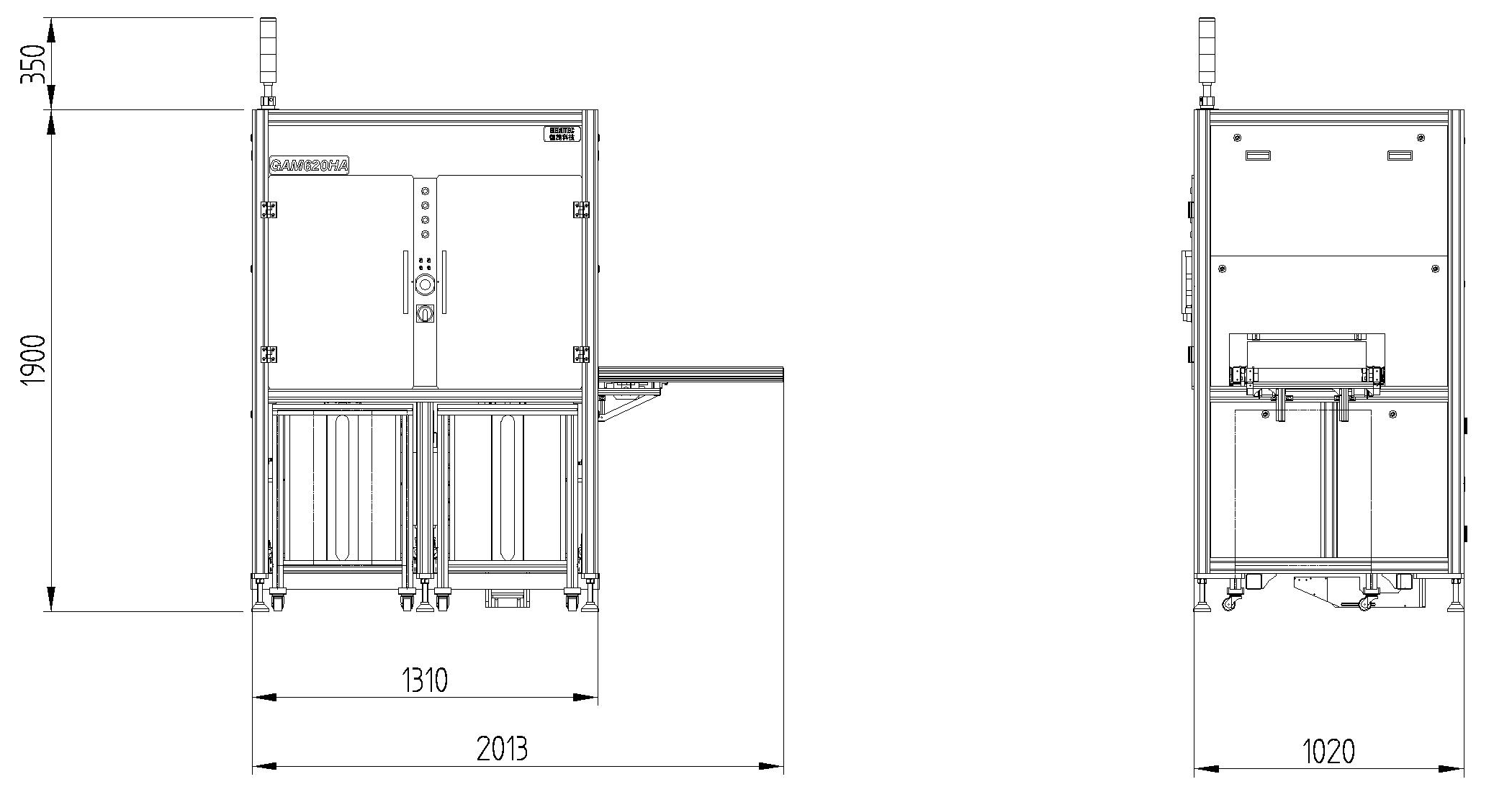

Front View/Side View
